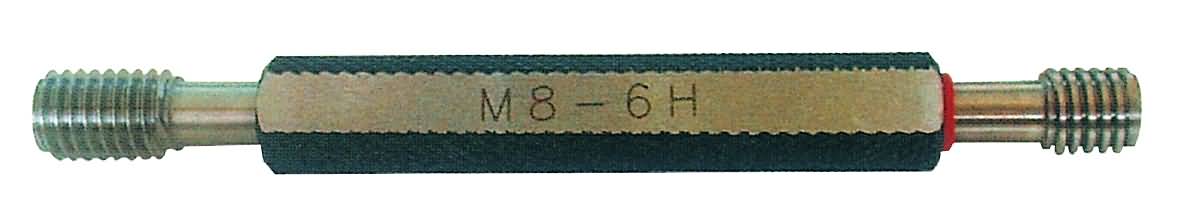

• Common Thread Plug Gages DIN13.IS01502-96 • Common Thread Ring Gages DIN13.DIN2280-89.IS01502-96 440@.#xxx • Thread Plug Gage "GO/NO GO" @=1 • Thread Ring Gage "GO" @=2 • Thread Ring Gage "NO GO" @=3 • represents pitch.

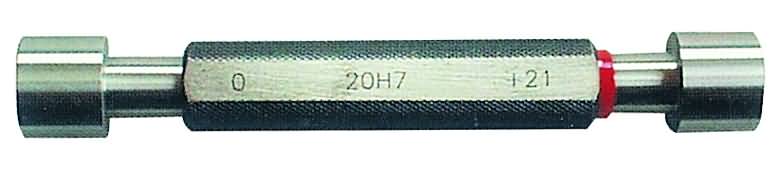

• Plain Plug Gage "GO/NO GO"@=1 • Plain Ring Gage "GO" @=2 • Plain Ring Gage "NO GO" @=3
xxxx=Nominal Diameter *100 If the result is with three digits, add "0" before the result.

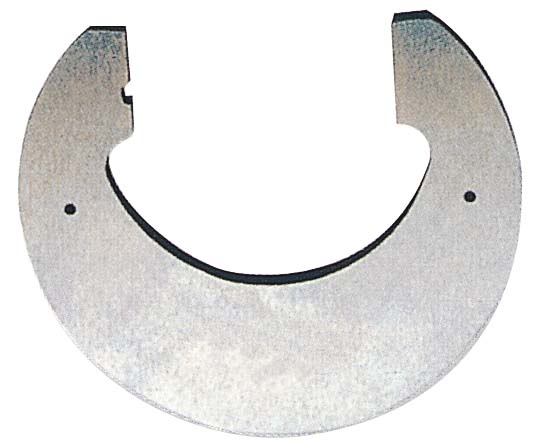

Snap Gages ("GO" and "NO GO") DIN 7160-7164
