Manual power on/off
Zero setting at any position
Metric/lnch system interchangeable at any position
With data output socket
Fast tracing of minimum or maximum value during
measurements
With display holding function

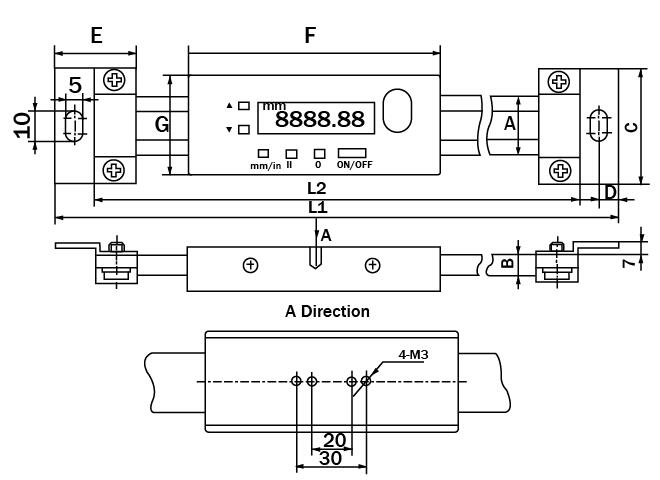

Order No. | Range | Resolution | A | B | C | D | E | F | G | LI | L2 |
(mm/in) | (mnvln) | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
1752.0100 | 100/4 | 0.01/0.0005 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 209 | 185 |
1752.0150 | 150/6 | 0.01/0.0005 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 259 | 235 |
1752.0200 | 200/8 | 0.01/0.0005 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 310 | 286 |
1752.0300 | 300/12 | 0.01/0.0005 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 444 | 420 |
1752.0400 | 400/16 | 0.01/0.0005 | 16 | 4 | 36 | 6 | 24 | 58 | 34 | 594 | 570 |
1752.0500 | 500/20 | 0.01/0.0005 | 24 | 5.5 | 45 | 8 | 32 | 92 | 40 | 682 | 650 |
1752.0600 | 600/24 | 0.01/0.0005 | 24 | 5.5 | 45 | 8 | 32 | 92 | 40 | 782 | 750 |
1752.0750 | 750/30 | 0.01/0.0005 | 24 | 5.5 | 45 | 8 | 32 | 92 | 40 | 932 | 900 |
1752.0800 | 800/32 | 0.01/0.0005 | 24 | 5.5 | 45 | 8 | 32 | 92 | 40 | 982 | 950 |
1752.1000 | 1000/40 | 0.01/0.0005 | 31 | 10.5 | 60 | 10 | 40 | 124.5 | 54 | 1240 | 1200 |
1752.1500 | 1500/60 | 0.01/0.0005 | 31 | 10.5 | 60 | 10 | 40 | 124.5 | 54 | 1740 | 1700 |
1752.2000 | 2000/80 | 0.01/0.0005 | 31 | 10.5 | 60 | 10 | 40 | 124.5 | 54 | 2240 | 2200 |
