• Manual power on/off
• Zero setting at any position
• Metric/lnch system interchangeable at any position
• With data output socket
-With display predetermination function

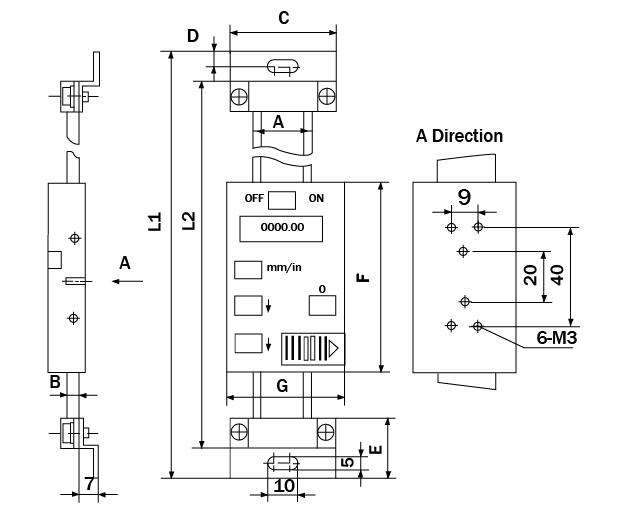

| Order No. | Range | Resolution | A | B | C | D | E | F | G | LI | L2 |
| (mm/in) | (mm/in) | mm | mm | mm | mm | mm | mm | mm | |||
| 1751.0100 | 100/4 | 0.01/0.0005 | 20 | 4 | 40 | 6 | 24 | 70 | 40 | 244 | 220 |
| 1751.0150 | 150/6 | 0.01/0.0005 | 20 | 4 | 40 | 6 | 24 | 70 | 40 | 294 | 270 |
| 1751.0200 | 200/8 | 0.01/0.0005 | 20 | 4 | 40 | 6 | 24 | 70 | 40 | 344 | 320 |
| 1751.0300 | 300/12 | 0.01/0.0005 | 20 | 4 | 40 | 6 | 24 | 70 | 40 | 444 | 420 |
| 1751.0400 | 400/16 | 0.01/0.0005 | 20 | 4 | 40 | 6 | 24 | 70 | 40 | 594 | 570 |
| 1751.0500 | 500/20 | 0.01/0.0005 | 20 24 | 4 5.5 | 40 45 | 6 8 | 24 32 | 70 90 | 40 51 | 682 | 650 |
| 1751.0600 | 600/24 | 0.01/0.0005 | 20 24 | 4 5.5 | 40 45 | 6 8 | 24 32 | 70 90 | 40 51 | 782 | 750 |
| 1751.0750 | 750/30 | 0.01/0.0005 | 24 | 5.5 | 45 | 10 | 32 | 90 | 51 | 932 | 900 |
| 1751.0800 | 800/32 | 0.01/0.0005 | 24 | 5.5 | 45 | 10 | 32 | 90 | 51 | 982 | 950 |
| 1751.1000 | 1000/40 | 0.01/0.0005 | 31 | 10.5 | 60 | 10 | 40 | 90 | 51 | 1240 | 1200 |
| 1751.1500 | 1500/60 | 0.01/0.0005 | 31 | 10.5 | 60 | 10 | 40 | 90 | 51 | 1740 | 1700 |
| 1753.2000 | 2000/80 | 0.01/0.0005 | 31 | 10.5 | 60 | 10 | 40 | 90 | 51 | 2240 | 2200 |
