With data presetting function
Absolute measurement and comparison measurement conversion at any position

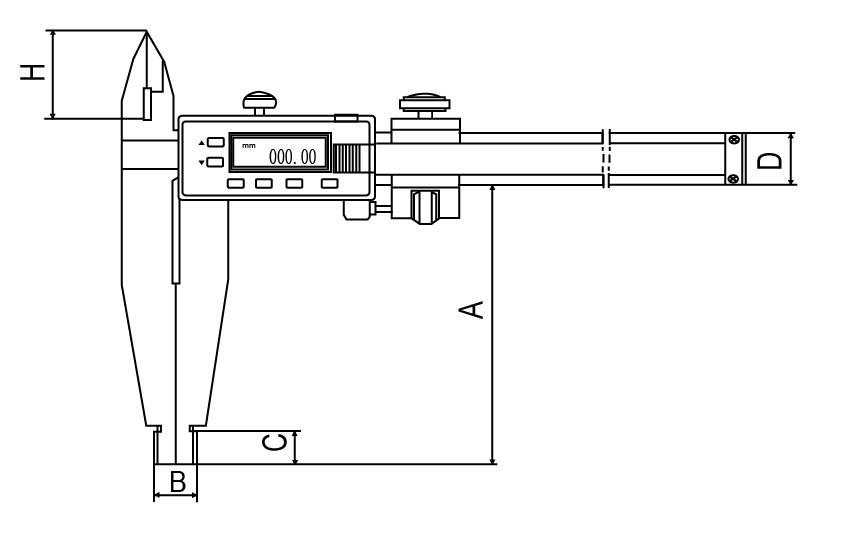

| Order No. | Range mm/ln | Resolution mm/in | A mm | B mm | C mm | D mm | H mm |
| 1352.0501/2/3 | 0-500/20" | 0.01/0.0005 | 100/125/150 | 10 | 12 | 25/25/25 | 40/40/40 |
| 1352.0601/2/3 | 0-600/24" | 0.01/0.0005 | 100/125/150 | 10 | 12 | 25/25/25 | 40/40/40 |
| 1352.0801/2/3 | 0-800/32" | 0.01/0.0005 | 125/150/200 | 20 | 18 | 32/32/32 | 47/47/47 |
| 1352.1001/2/3 | 0-1000/40" | 0.01/0.0005 | 125/150/200 | 20 | 18 | 32/32/32 | 47/47/47 |
| 1352.1501/2/3 | 0-1500/60" | 0.01/0.0005 | 125/150/200 | 20 | 20 | 32/48/48 | 47/54.5/54.5 |
| 1352.2001/2/3 | 0-2000/80" | 0.01/0.0005 | 150/200/300 | 20 | 20 | 48/48/48 54.5/54.5/54.5 |
